SPECIFICATIONS

Ambient working temperature: -20°C to 40°C / -5°F to 105°F

Ammeter (AC): Yes

Brand Name: Shelly

CPU: ESP-Shelly-C68F

Camera Equipped: No

Certification: CE,FCC,RoHS

Communication method: Bluetooth-Compatible,Zigbee,Wi-fi

Compatibility: All Compatible

External protectio: Tripping characteristic B or C,16A max rated current,min. 6 kA interrupting rating energy limiting class 3

Flash: 8MB

High-concerned chemical: none

Humidity: 30% to 70% RH

Internal-temperature sensor: Yes

MQTT: Yes

Max. altitude: 2000 m / 6562 ft

Max. switching current AC: 10 A (per channel), 16 A (total), 18 A (total peak)

Max. switching current DC: 10 A

Max. switching voltage: 240 V,30 V

Model Number: Shelly 2PM Gen4

Origin: Mainland China

Power consumption: < 1.4 W

Power supply: 110 - 240 V~ / 24 VDC ±10%

Schedules: 20

Scripting: Yes

Specification: EU Plug

State of Assembly: Ready-to-Go

Voltmeter (AC): Yes

Webhooks (URL actions): 20 with 5 URLs per hook

Wireless Function: Yes

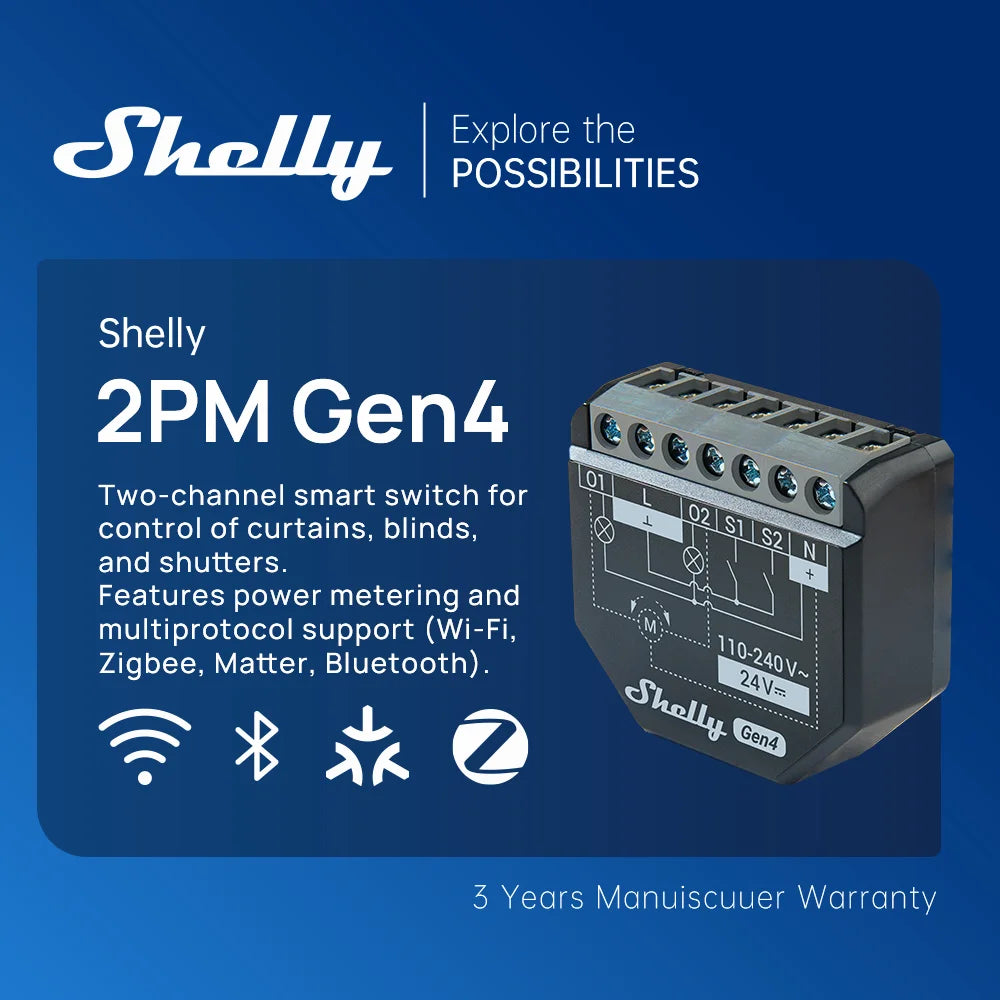

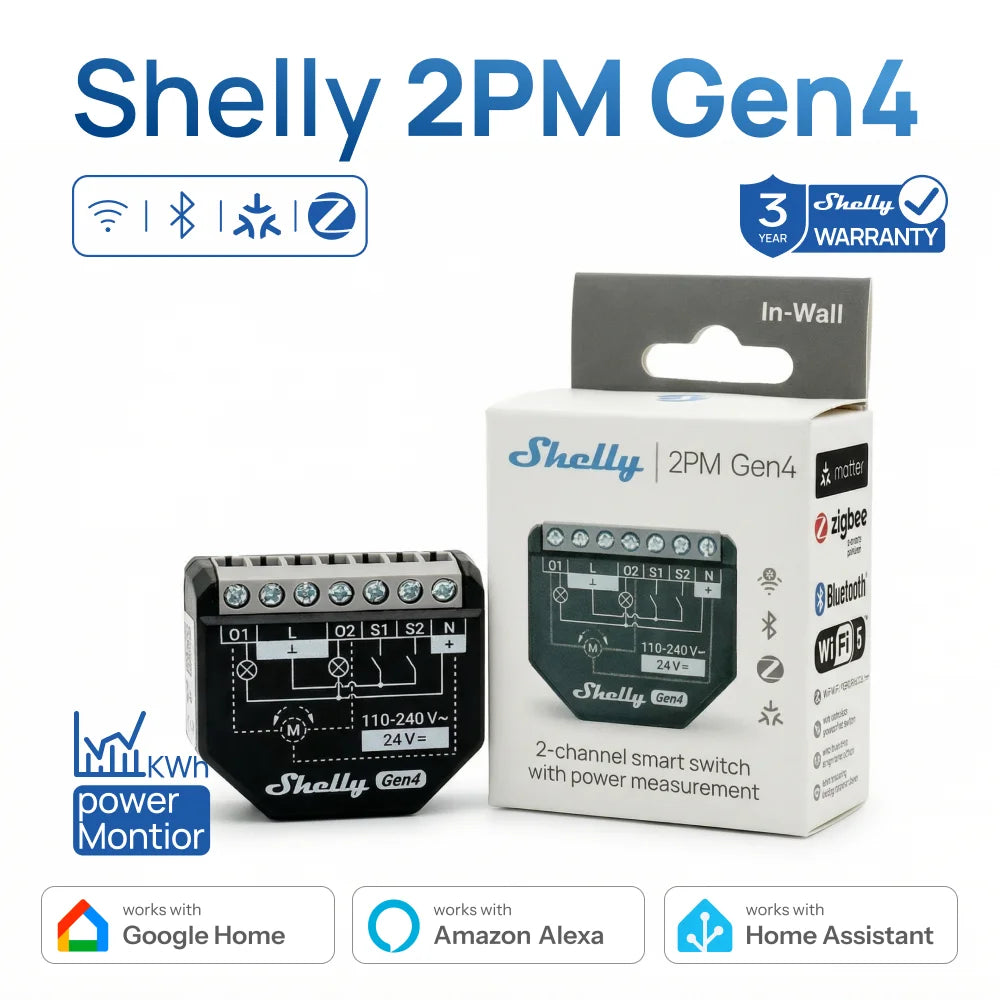

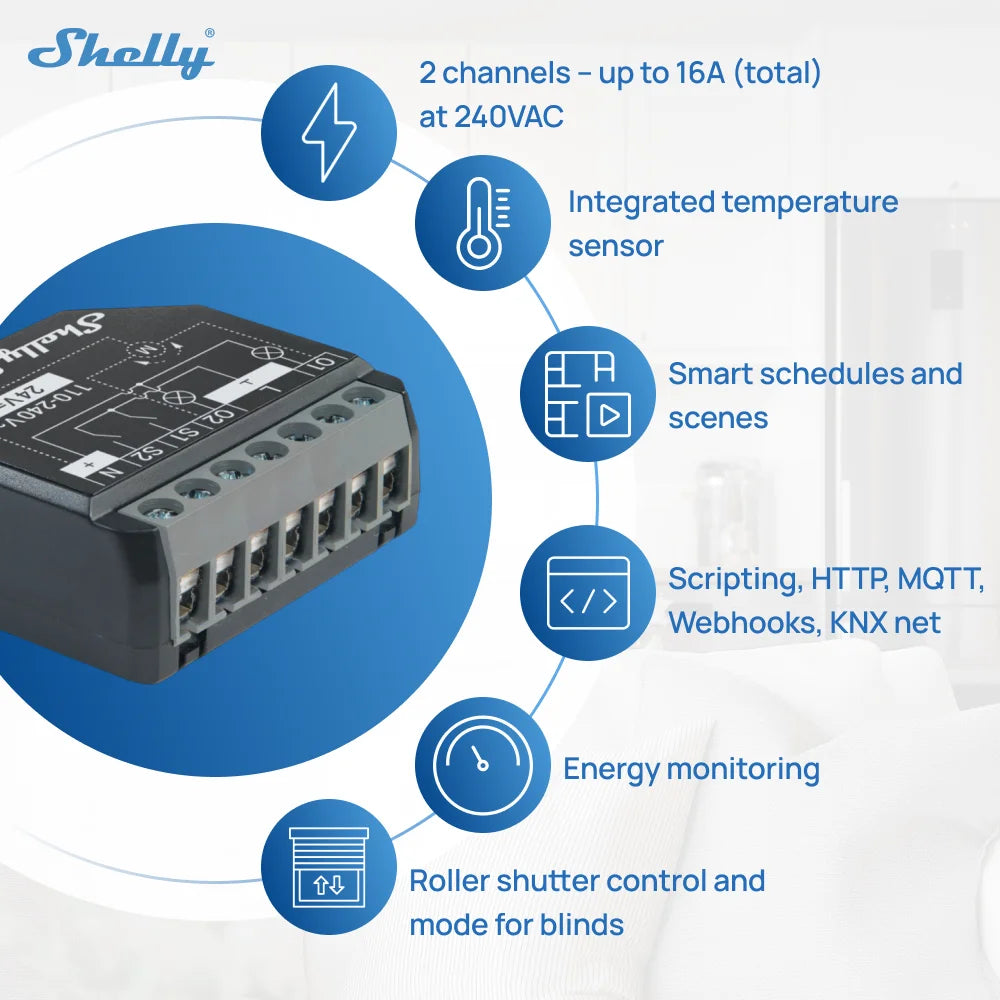

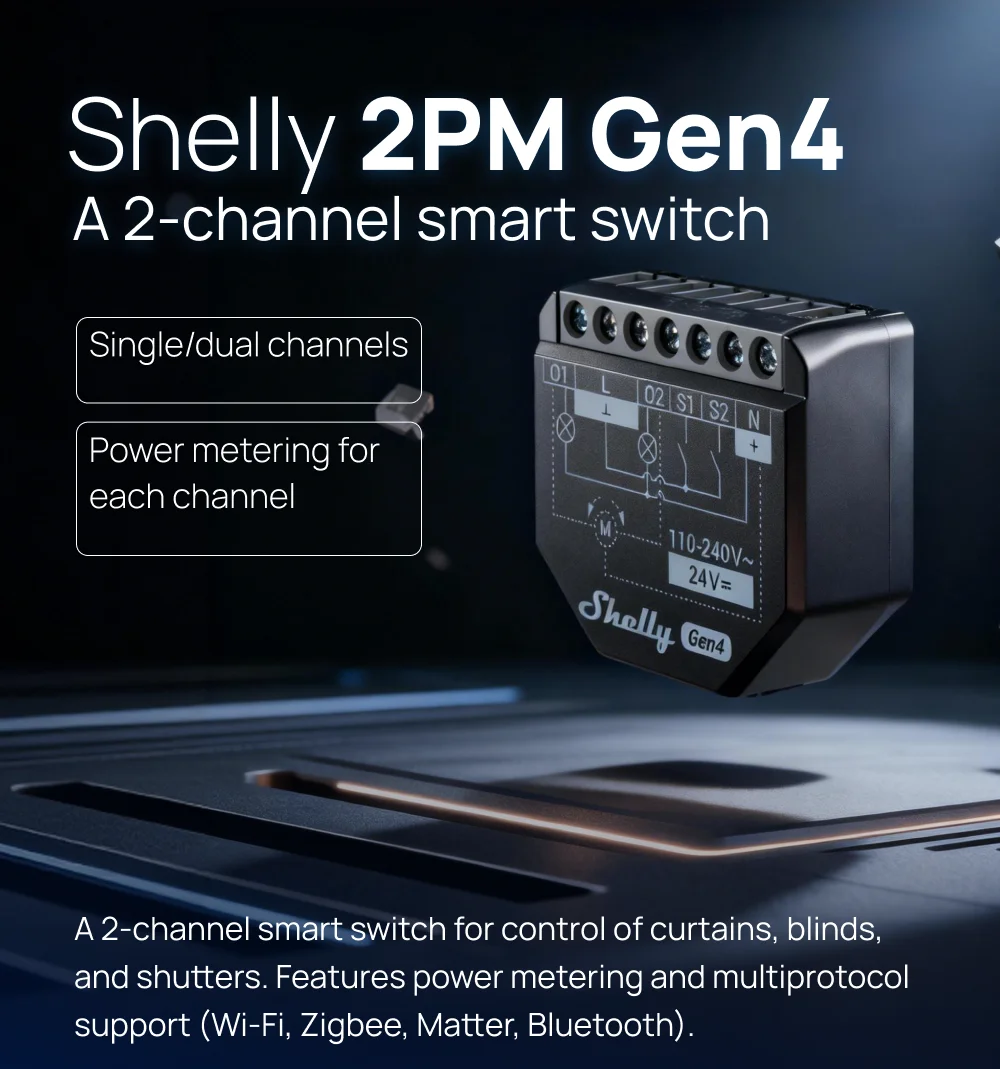

A 2-channel smart switch for control of curtains, blinds, and shutters. Features power metering and multiprotocol support (Wi-Fi, Zigbee, Matter, Bluetooth).

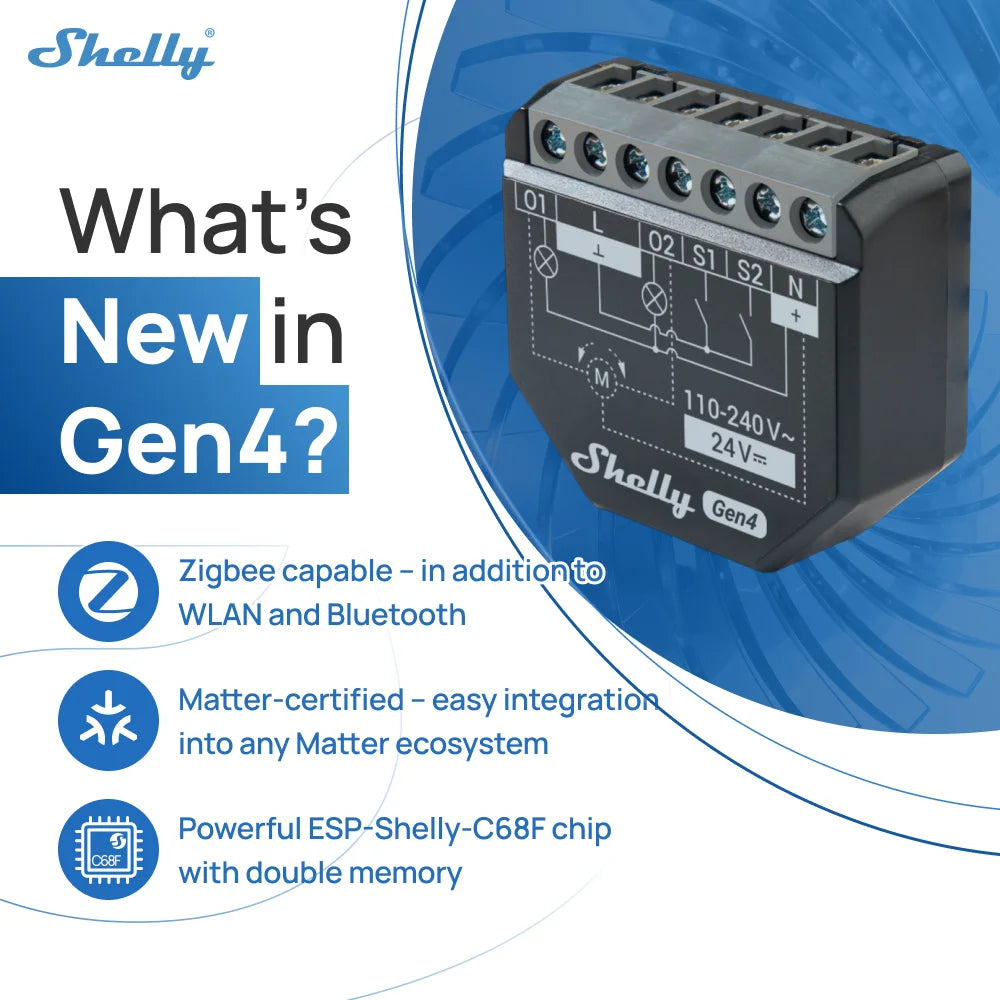

Multiprotocol connectivity: Choose from Zigbee, Bluetooth, Wi-Fi and Matter

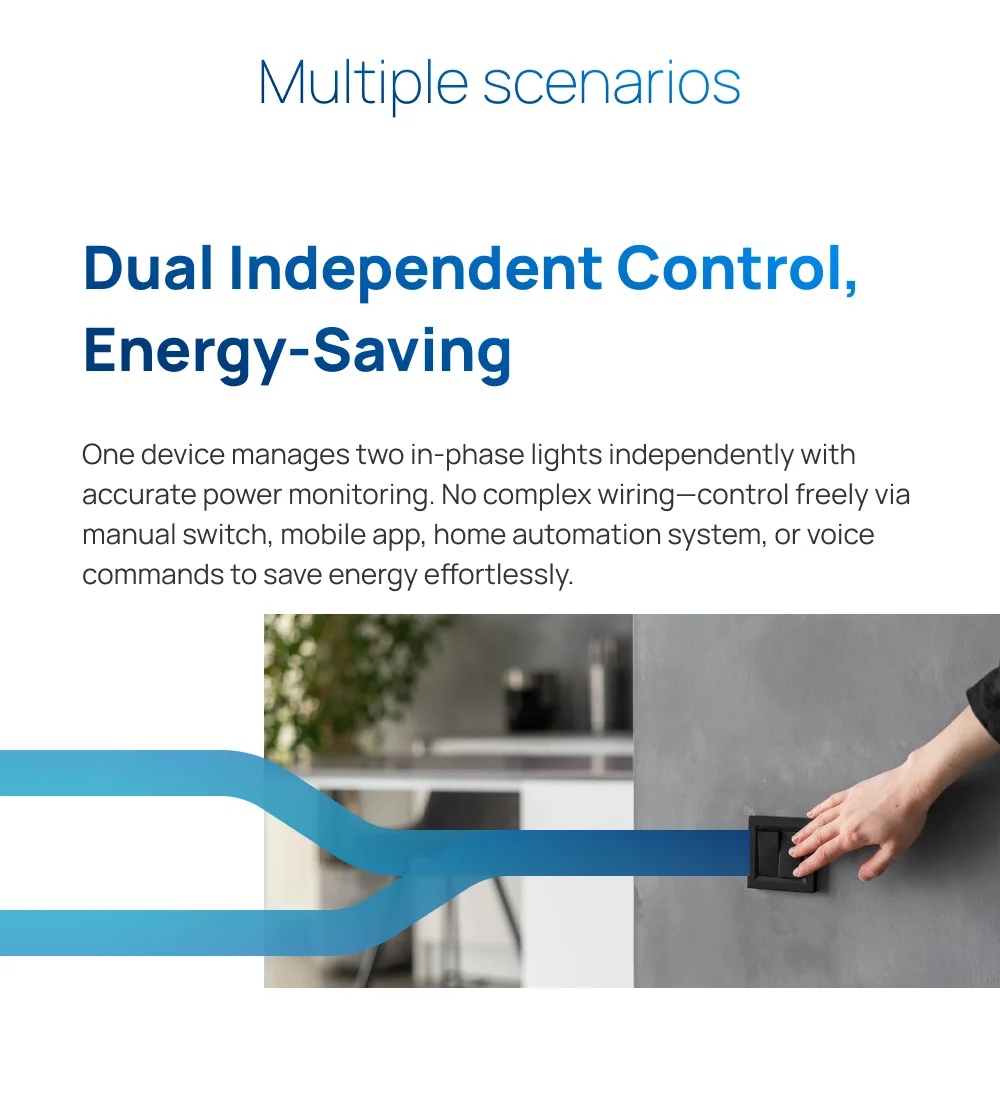

2 channels on the same phase

Power metering on each channel

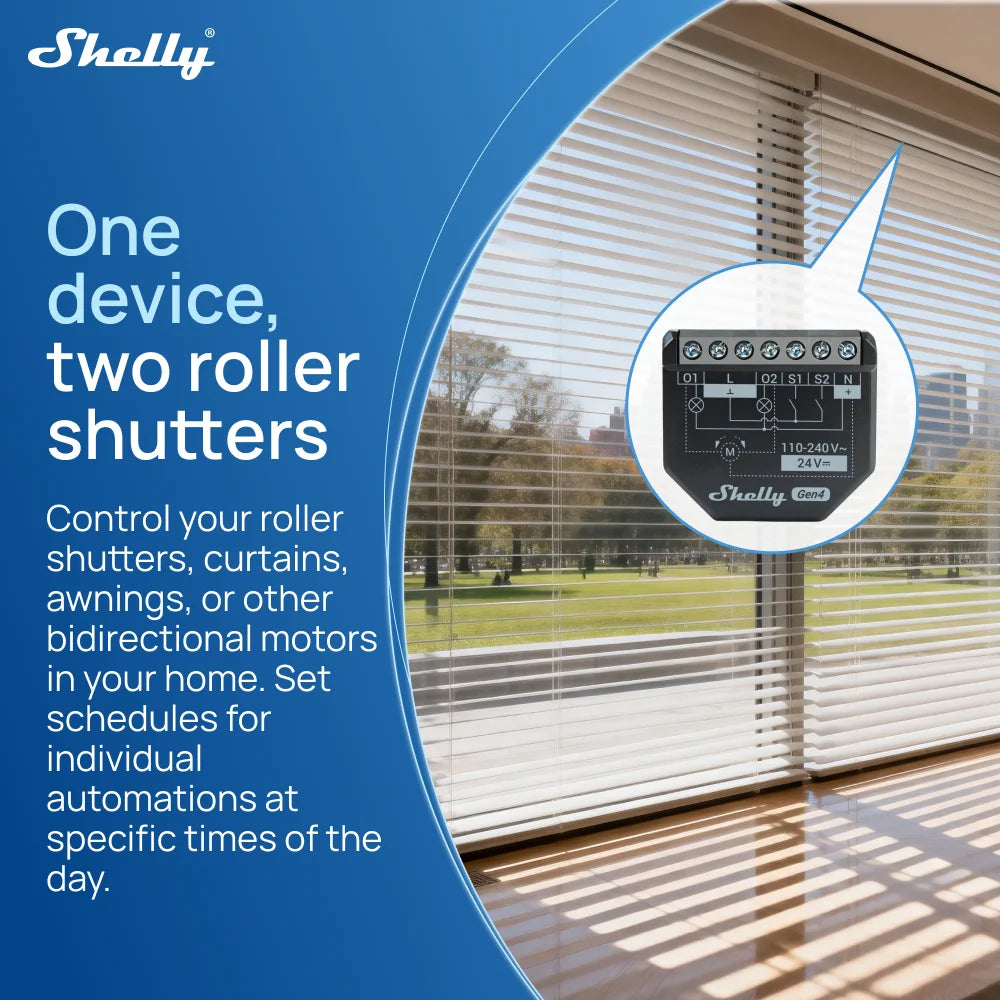

Cover (roller) control - Automate and adjust the position of roller shutters, blinds, curtains, awnings, bi-directional AC motors.

Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.

Apple Homekit support: Control connected devices using Apple Home app or Siri through Matter

Perfect to retrofit behind existing switches and sockets

Supports schedules, scenes and local actions

Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets

Internal temperature sensor for overheating protection

Wi-Fi & Zigbee range extender & Bluetooth gateway

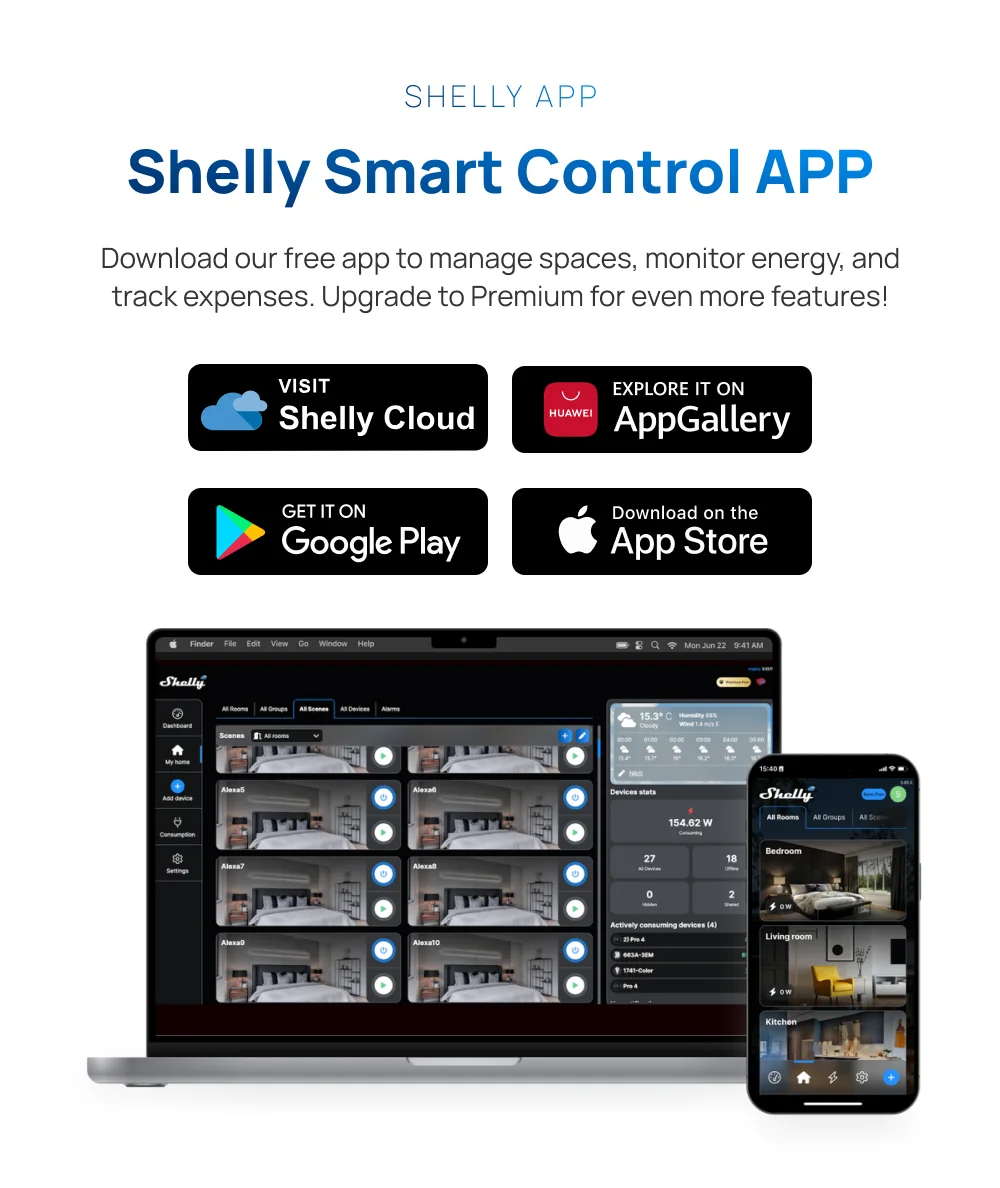

Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.

•


Quantity	Value
Physical

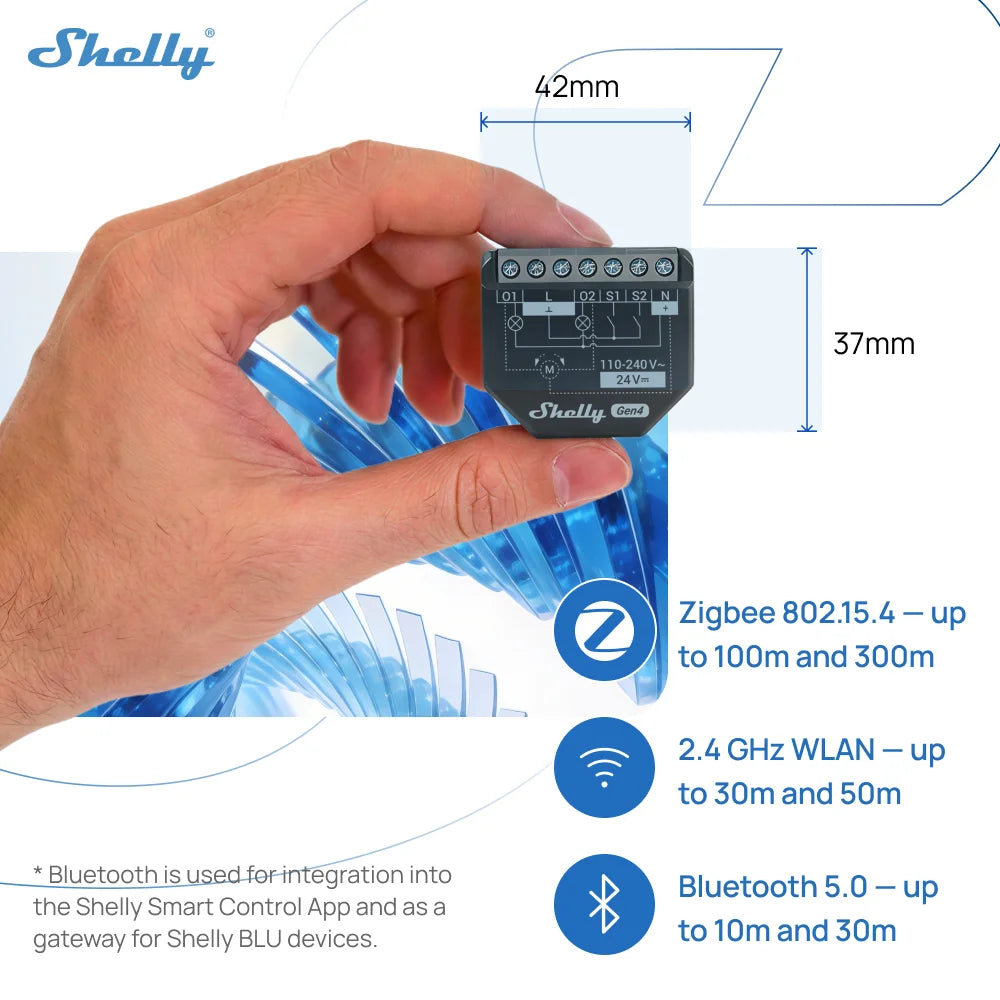

Size (HxWxD):	37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 inch
Weight:	30 g / 1.06 oz
Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall box
Shell material:	Plastic
Shell color:	Black
Terminals color:	Grey (Mouse Grey)
Environmental
Ambient working temperature:	-20°C to 40°C / -5°F to 105°F
Humidity:	30% to 70% RH
Max. altitude:	2000 m / 6562 ft
Electrical
Power supply:	110 - 240 V~ / 24 VDC ±10%
Power consumption:	< 1.4 W
External protection:	Tripping characteristic B or C, 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
Output circuits ratings
Max. switching voltage:	240 V~ 30 V⎓
Max. switching current AC:	10 A (per channel), 16 A (total), 18 A (total peak)
Max. switching current DC:	10 A
Sensors, meters
Voltmeter (AC):	Yes
Ammeter (AC):	Yes
Internal-temperature sensor:	Yes
Radio
Wi-Fi
Protocol:	802.11 b/g/n/ax
RF band:	2412 - 2472 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth
Protocol:	5.0
RF band:	2402 - 2480 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Zigbee
Protocol:	802.15.4
RF bands:	2400 to 2483.5 MHz
Max. RF power:	< 20 dBm
Range:	Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)
Microcontroller unit
CPU:	ESP-Shelly-C68F
Flash:	8MB
Firmware capabilities
Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes
